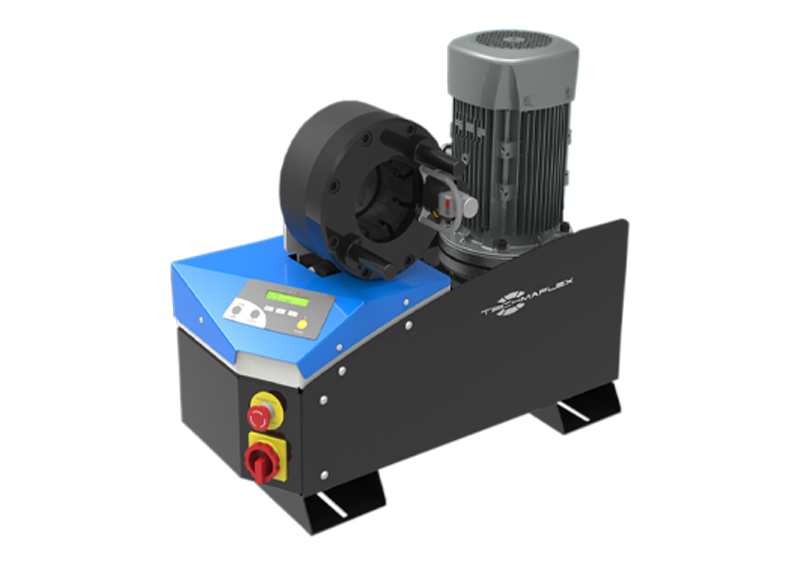

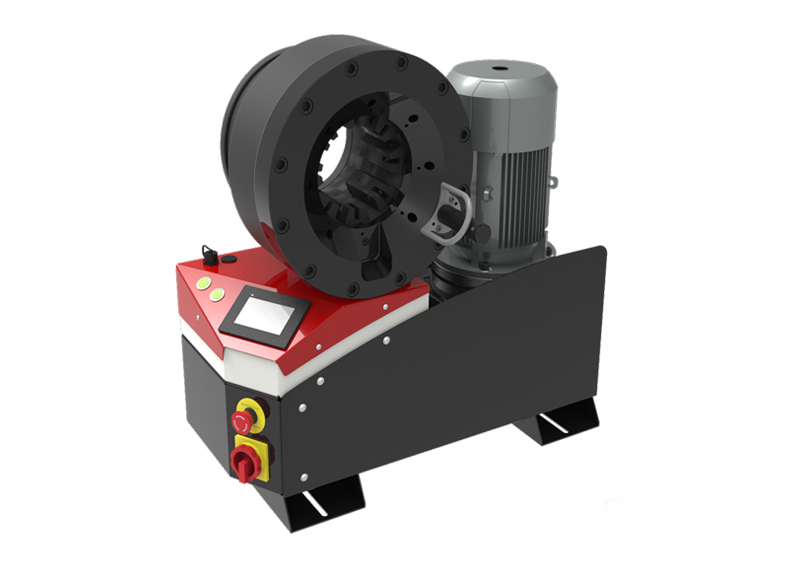

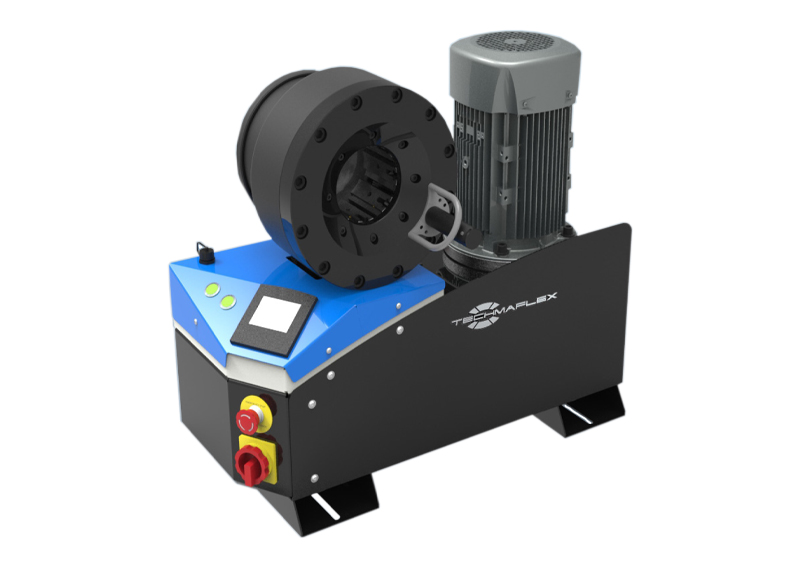

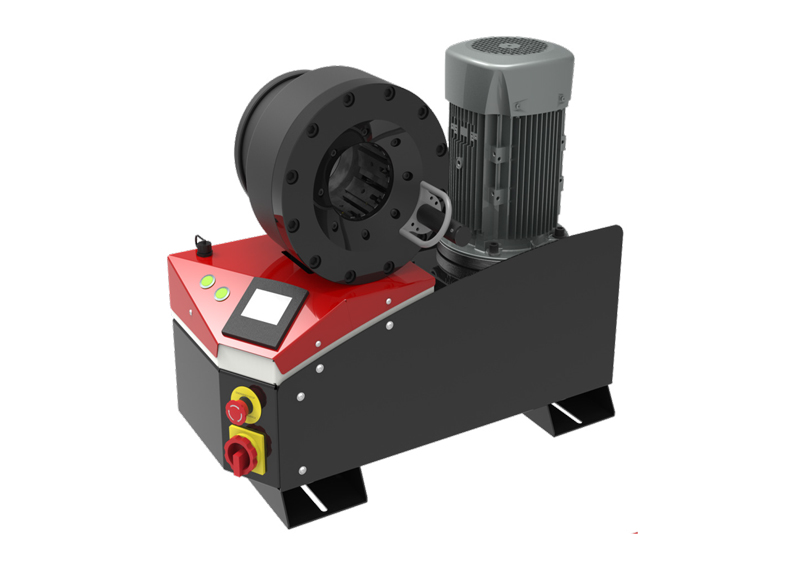

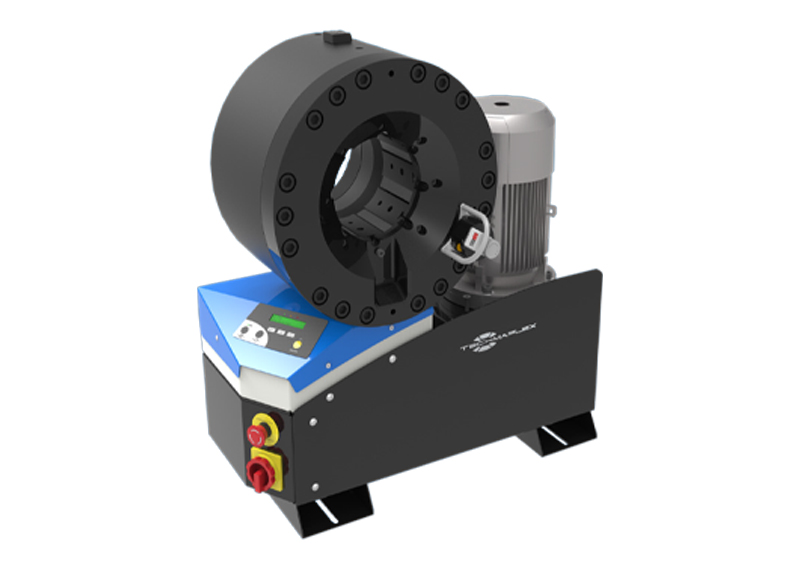

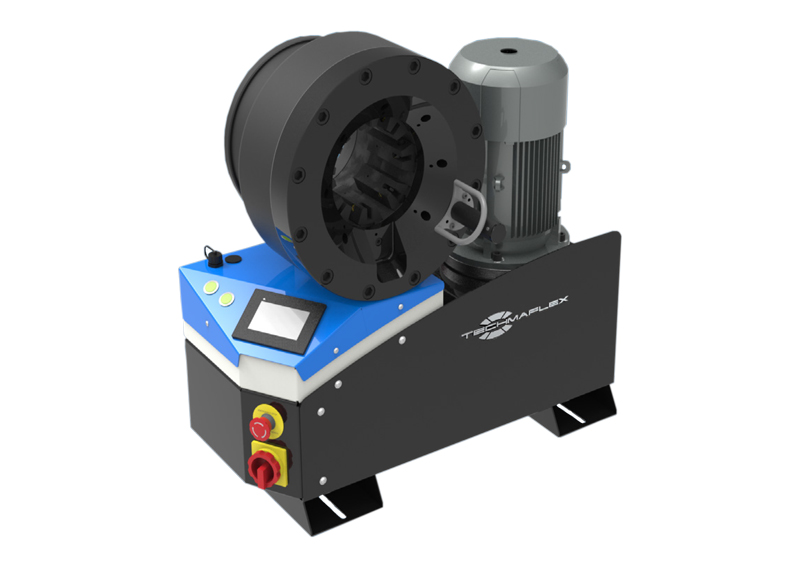

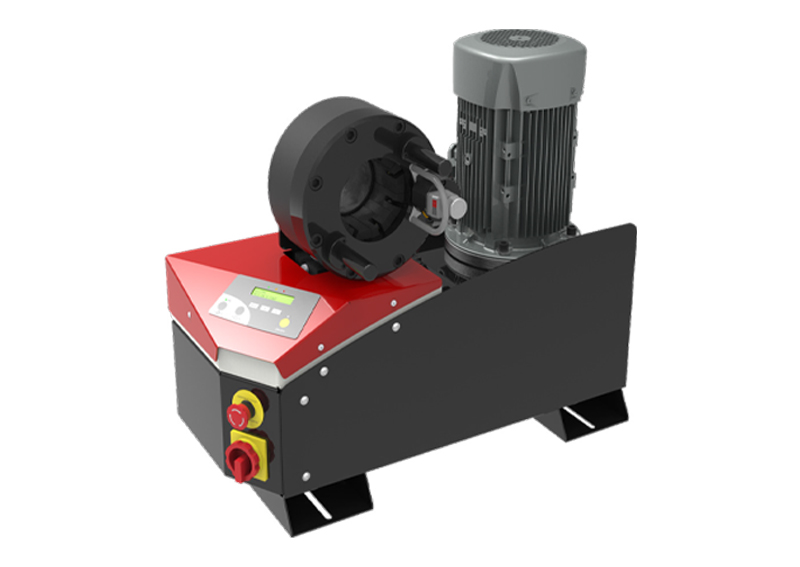

TECHMAFLEX S-CRIMP 350 EVO
FULL SERVICE WORKSHOP BENCHTOP; VERY HIGH CRIMP FORCE
TECHNICAL SPECIFICATIONS
CAPACITY*
- 2wb: 3” max.
- Textile / Suction Hose: 4” max.
- 4ws: 2” max.
- 6ws: 2” max.
CRIMP RANGE
4 - 130 mm (0.157 - 5.118”)
CRIMP FORCE
350 t
OPENING WITH DIES
+54 mm (+2.125”)
COMPLETE OPENING
180 mm (7.086”)
MASTER DIE LENGTH
115 mm (4.523”)
STANDARD DIES
15, 18, 21, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 62, 66, 70, 73, 76
NOISE LEVEL
<70 dB A
MOTOR
5.5 kW
VOLTAGES
- 220/240 V, 3Ph, 50 Hz
- 380/415 V, 3Ph, 50 Hz
- 208/240 V, 3Ph, 60 Hz
- 380/415 V, 3Ph, 60 Hz
DIMENSIONS
765 x 400 x 750 mmCOMPLETE OPENING(30 x 16 x 30”
NET WEIGHT
262 kg (578 lb)
TECHNICAL FEATURES
- Automatic maintenance alerts
- Cylinder protection against dust - durable design
- Also available as S CRIMP 350 EVO L with 4.0 kW Motor
*Indicative capacities depending on hose and fitting type
